OPPO BDP-103/BDP-105/BDP-103D Blu-ray Disc Player Firmware Update
Release Information

Release date: November 21, 2013.

Category: Latest Public Beta Test Release

Main Version: BDP10X-67-1120B

Loader Version: 6U1000 or 7B1300 (BDP-103), 7B1300 (BDP-105, BDP-103D)

Sub Version: MCU103-05-0916 (BDP-103), MCU105-04-1113 (BDP-105), , MCU13D-01-0618 (BDP-103D), DB10X 131030 (BDP-103D)

How to Get the Public Beta Firmware Upgrade:

There are two easy ways to upgrade your player's firmware.

1. USB Thumb Drive - Use your computer and a USB thumb drive.
2. Firmware Upgrade Disc - Use your computer to make a firmware upgrade disc.

Warning: Although firmware upgrade is an easy and usually trouble-free process, it is important to ensure that the power supply to the player is stable, and the upgrade process is not interrupted. A failed firmware upgrade can render the player unusable.

This release is still a beta test version, not an official release. Use it only if you would like to experiment with the new features and improvements. There is a very small chance of the new features and improvements not working properly. If that happens, please report any issue to us.



Release Notes:

This release is for the OPPO BDP-103, BDP-105 and BDP-103D Blu-ray Disc players.

Special Notice:

  1. Once this Public Beta firmware is installed on the player, you can revert back to the previous Official release via a USB thumb drive. There will be no issues upgrading to any future official or beta firmware release.
  2. Due to the extensive changes in this major firmware update, it is required that the user performs a "Reset Factory Defaults" operation after the firmware is installed. Please write down your special settings before doing this, and remember to re-apply your settings and adjust the proper volume level (if applicable) before you play any content. You may experience stability issues if this step is not performed.
  3. Even though this firmware provides functionality similar to a pre-amplifier, we recommend that you use caution when connecting the Multi-channel or Stereo audio outputs directly to your amplifier and speakers.
  4. This Public Beta firmware is designed to work with new versions of Apple iOS and Android media control applications, which add new features like SMB access, album art display, media category support, and the ability to share information to mainstream social network websites. The MediaControlHD V2.0 (for iPad and iPad mini) is already in the App Store, and another version for the iPhone, as well as a corresponding Android app, will be available shortly.

Comparing to the previous Official release version BDP10X-60-0910 (which is essentially the same as BDP10X-58-0719 release), the major changes included in this version are:

  1. Added the "Power On Volume" and "Maximum Volume" selections for the Multi-channel and the Stereo (BDP-105 only) audio outputs. Both selections are available at the Setup Menu -> Audio Processing.
  2. Added the "Power On Input" selection which allows the customer to decide which input source should be used when the player powers on. This selection is available at the Setup Menu -> Playback Setup.
  3. Added the "Settings Management" selection which allows the customer to backup or restore the player’s settings. This selection is available at the Setup Menu -> Device Setup. A USB flash drive is required for this purpose, and the backup file is encrypted to only allow access from OPPO Technical Support.
  4. Added the “4Kx2K Output” selection to Setup Menu -> Video Setup with two settings: “Auto” and “Forced”. The “Auto” setting will upscale 24 Hz content to 4K if the connected display supports a 4K input. The “Forced” setting will output a 4K signal regardless of whether or not the player detects a 4K display and irrespective of the original source format.
  5. Added the "Auto" mode when choosing the SACD output audio format. This mode is available at the Setup Menu -> Audio Format Setup -> SACD Output.
  6. Added support for automatic file and folder sorting when accessing SMB servers. The files and folders are now sorted in alphabetic order.
  7. Added support for MKV files with PGS subtitles.
  8. Added Zoom functionality to video content sent through the HDMI IN ports.
  9. Upgraded the "CinemaNow" and "YouTube" applications.
  10. Improved support for CUE playlists. Now, a single CUE file can point to multiple music files in the same folder.
  11. Resolved a playback issue with several DVD-Audio discs. Customers reported that after upgrading to the BDP10X-58-0917 firmware, some DVD-Audio discs would play for a few seconds then the player was locked up, and all you heard was white noise. Samples include “Elvis: 30 #1 Hits”, “Bruckner: Symphony No. 7”, “Dream Theater”, “Nightwish: Once”, as well as discs self-authorized using “HD-Audio Solo Ultra” program.
  12. Resolved a frame rate decoding error for 24 Hz video files. Customers reported that after upgrading to the BDP10X-58-0917 firmware, many MKV, M2TS and TS files which were encoded as 23.976 Hz were decoded as 29.970 Hz. This issue has been resolved.
  13. Resolved an incorrect audio Downmix issue with the Stereo audio outputs (BDP-105 only). Customers reported that after setting "Stereo Signal" to "Front Left/Right", they could hear surround channel audio from the dedicated Stereo audio outputs. This issue has been resolved.
  14. Resolved a visible streaking issue observed on the BDP-103D player. Customers reported that after turning on the Darbee processing, they could see streaks or stripes in the background details, which became more obvious after increasing the Darbee level or switching to Full-Pop mode. This issue has been resolved in the beta release.
  15. Resolved a multi-channel DSD support issue when using Dual Display mode. Customers reported that if they connected the HDMI 1 Out to a TV and the HDMI 2 Out to a DSD-capable receiver, the receiver could only recognize the Front Left and Front Right channels even if the players were reading a multi-channel SACD. This issue has been resolved.
  16. For the BDP-103D player, this firmware added three commands (QDB, SDB and DRB) to the RS-232 protocol for Darbee control. It also provided finer control over the Darbee level adjustment (in 1% increments).
  17. Added an experimental "Gapless Playback" feature. Currently, this feature only works for WAV and APE music files, and can be enabled in the music file navigation interface by pressing the OPTION button and then selecting the "Gapless Playback" option. In Gapless Playback mode, you may use buttons like PAUSE, PLAY, STOP, NEXT and PREV, but not REV and FWD. This feature is still under development and may be improved in future firmware releases.
  18. Resolved a compatibility issue with some DVD/BD blank discs. Customers reported that their self-burnt DVD or BD discs failed to load and play on the OPPO players. Samples include Verbatim DVD+R DL 8.5G and BD-R DL 50GB blank discs. This firmware upgraded the software driver for the disc loader and resolved this issue.
  19. General disc compatibility improvements based on recent and upcoming Blu-ray releases as well as user-submitted disc samples, sample title includes "The Longest Day (Blu-ray, 2012)".

All features and improvements of the previous firmware are also included in this version.



Firmware Upgrade Instructions:



Note: Since this is a public beta test version, it cannot be installed using the "Via Network" upgrade method. Please choose the "Via USB" or "Via Disc" method instead. Alternatively, you can wait for this beta test version to be qualified as an official release version, and then perform an update to the latest official release via the Internet.



Firmware Upgrade via a USB Thumb Drive

  1. Click here to download the BIN file for firmware version: BDP10X-67-1120B.
  2. Insert a USB thumb drive to the computer that stores the downloaded BDP10X.bin file. (The USB drive must be in FAT or FAT32 format, not NTFS. If you are not sure, just use a new USB drive that is 2GB or smaller since small drives are usually factory-formatted in FAT/FAT32.) Verify that the BIN file is in the root/main directory of the USB drive, not contained within any other folder. Ensure the file name and size are the same as shown below:

    USB Drive

  3. Remove the USB drive from the computer.
  4. Turn on your TV display and the OPPO player. Eject the disc tray from the OPPO player and remove any disc. Make sure that there is no other USB drive connected to the player.
  5. Insert the USB drive containing the firmware file to a USB port on the player's front or back panel.
  6. The player usually can recognize the firmware file and prompt you for firmware upgrade. In case the player does not prompt you, press the SETUP button on the remote control to enter the setup menu. Select Device Setup, Firmware Upgrade, and then Via USB.
  7. Please follow the on-screen instructions to complete the firmware upgrade process. Use the remote control to respond to on-screen prompts. Do not use the front panel buttons because the front panel buttons will stop working during the upgrade process.
  8. DO NOT ATTEMPT TO TURN OFF THE PLAYER, UNPLUG THE POWER, OR PRESS ANY BUTTONS OTHER THAN NECESSARY TO RESPOND TO THE ON-SCREEN PROMPT DURING THE REMAINING UPGRADE PROCESS.
  9. In order to complete the firmware upgrade process, the player will turn off automatically. Unplug the USB drive after the player turns itself off.
  10. Turn on the player again, a new on-screen prompt of "Reset Factory Defaults" will show. It is optional but recommended to reset the player settings by selecting "Reset Factory Defaults".
  11. Check the new firmware version by going to the setup menu, and then selecting Device Setup - Firmware Information. If you notice that the firmware versions displayed do not match the versions listed in this release note, please contact us to obtain the firmware files that are missing from a previous update.
  12. Enter your customized settings as necessary.
  13. Congratulations! You have just completed the firmware upgrade. Erase or discard the firmware file so you do not accidentally install the firmware again.



Firmware Upgrade via CD

  1. If you requested a firmware CD from OPPO customer service (please call or email for Public Beta firmware), jump to step 5 of this procedure. You may also follow steps 2 - 4 to burn a firmware CD. (For Mac OS X users, a special CD burning tutorial is available here.)
  2. Click here to download the firmware CD image file BDP10X-67-1120B-CD-Image.iso.
  3. Use your favorite CD/DVD burning software to burn a firmware disc from the downloaded CD image file. While doing this, make sure you are not creating a new data disc, but burning from the already-created ISO CD image. Please consult your CD burning software's help/instruction manual for more information on how to do this. Some general instruction for common CD burning software is listed below.

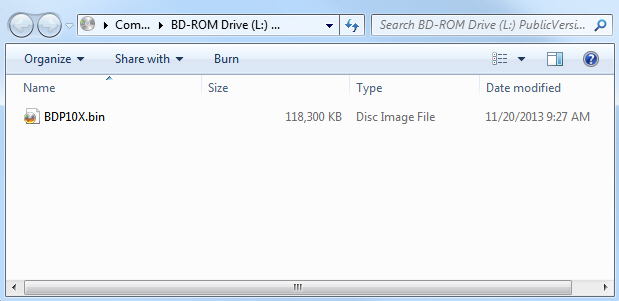

  4. After the disc is burned, verify on the computer that the disc now contains a BDP10X.bin file. Ensure the file name and size are the same as shown below. This is your firmware disc.

    CD

  5. Turn on your TV display and the OPPO player. Make sure that the player is not playing any content.
  6. Eject the disc tray, put in the firmware disc, and then close the tray. The player usually can recognize the firmware disc and prompt you for firmware upgrade. In case the player does not prompt you, press the SETUP button on the remote control to enter the setup menu. Select Device Setup, Firmware Upgrade, and then Via Disc.
  7. Please follow the on-screen instructions to complete the firmware upgrade process. Use the remote control to respond to on-screen prompts. Do not use the front panel buttons because the front panel buttons will stop working during the upgrade process.
  8. DO NOT ATTEMPT TO OPEN THE DISC TRAY, TURN OFF THE PLAYER, UNPLUG THE POWER, OR PRESS ANY BUTTONS OTHER THAN NECESSARY TO RESPOND TO THE ON-SCREEN PROMPT DURING THE REMAINING UPGRADE PROCESS.
  9. Remove the disc from the tray when the tray ejects out. In order to complete the firmware upgrade process, the player will turn off automatically. In case the player retracts the tray and turns off before you remove the firmware disc, press the OPEN/CLOSE button on the front panel. The player will turn on and the tray will eject. Remove the disc at this time.
  10. Turn on the player again, a new on-screen prompt of "Reset Factory Defaults" will show. It is optional but recommended to reset the player settings by selecting "Reset Factory Defaults".
  11. Check the new firmware version by going to the setup menu, and then selecting Device Setup - Firmware Information. If you notice that the firmware versions displayed do not match the versions listed in this release note, please contact us to obtain the firmware files that are missing from a previous update.
  12. Enter your customized settings as necessary.
  13. Congratulations! You have just completed the firmware upgrade. Erase or discard the firmware disc so you do not accidentally install the firmware again.



General instructions on working with ISO image files

Note: These are general instructions on how to burn the firmware CD with common CD burning software. Please consult your CD burning software's help/instruction manual for more detail.

  • In Nero Burning Rom version 6 or above , go to the 'Recorder > Burn Image' menu and select the ISO image you downloaded.
  • In Nero Burning ROM version 5 or earlier, just go to Nero Burning ROMs 'File > Burn Image' option and select the ISO image you downloaded.
  • In Nero Express select the option for 'Disc Image or Saved Project' to select the ISO image file you downloaded and burn to CD.
  • In Easy CD Creator , go to 'File > Record CD from CD Image' and select the ISO image you downloaded.
  • In Power2Go , go to 'Burning > Burn Disc Image' and select the ISO image you downloaded.
  • In ImgBurn, go to 'Write image file to disc' and select the ISO image you downloaded.
  • In burnatonce, go to 'File > Load New Image...' and select the ISO image you downloaded. Click the "Write" button to burn the CD.
