OPPO BDP-103/BDP-105/BDP-103D/BDP-105D Blu-ray Disc Player Firmware Update
Release Information

Release date: May 19, 2014.

Category: Latest Official Release

Main Version: BDP10X-75-0515

Loader Version: 6U1000 or 7B1300 (BDP-103), 7B1300 (BDP-105, BDP-105D, BDP-103D)

Sub Version: MCU103-05-0916 (BDP-103), MCU105-04-1113 (BDP-105), MCU13D-01-0618 (BDP-103D), MCU15D-01-0930 (BDP-105D), DB10X 131030 (BDP-103D, 105D)

How to Get the Firmware Upgrade:

There are three easy ways to upgrade your player's firmware.

If your player has an Internet connection:
1. Via Network - This is the easiest and fastest way.

If your player does not have an Internet connection:
2. USB Thumb Drive - Use your computer and a USB thumb drive.
3. Firmware Upgrade Disc - Use your computer to make a firmware upgrade disc.

If you are unable to perform one of the above methods, you can submit a request for a firmware upgrade disc which can take up to 1 to 2 weeks to allow for shipping time.

Warning: Although firmware upgrade is an easy and usually trouble-free process, it is important to ensure that the power supply to the player is stable, and the upgrade process is not interrupted. A failed firmware upgrade can render the player unusable.

Release Notes:

This release is for the OPPO BDP-103, BDP-105, BDP-103D and BDP-105D Blu-ray Disc players.

Special Notice:

  1. Once this firmware version is installed on the player, you will not be able to revert back to any previous official or public beta firmware. There will be no problem upgrading to any future official or beta firmware release.
  2. Due to the extensive changes in this major firmware update, it is recommended that the user performs a "Reset Factory Defaults" operation after the firmware is installed. Please write down your special settings before doing this, and remember to re-apply your settings and adjust the proper volume level (if applicable) before you play any content. You may experience stability issues if this step is not performed.

Comparing to the current Official release version BDP10X-70-0218, the major changes included in this version are:

  1. Fixed a bug in calculating acoustic propagation delay from the "Speaker Distance" parameters of the "Speaker Configuration" setting.
  2. Upgraded the Netflix application to the latest version certified for OPPO BDP-10x models. This version features a brand new user interface. It also contains improved adaptive streaming technology which will improve streaming quality for high-speed internet connections. The new Netflix application should help customers who have reported poor streaming quality during peak hours. (On a related note, recently customers reported that Netflix streaming on OPPO players and other streaming devices could become unstable with error message like "not connect to internet". In our experience this issue is not caused by the player or its firmware update. It could be either a server-side problem or an Internet traffic problem. Should this happen to your device, please report the outage to Netflix. Netflix recommends a troubleshooting method of de-activating the device and re-activating it. De-activation can be done from the OPPO player’s setup menu (Setup -> Device Setup -> Netflix -> De-activate). Re-activation can be done by accessing the Netflix application from the Home Menu. In most cases, Netflix service can resume working after a few tries. The new Netflix application in this update contains additional network troubleshooting tool which can be used to test your connection to Netflix servers.)
  3. Added the "Digital Concert Hall" application from Berliner Philharmoniker, which provides live and recorded classical music concerts in HD video from leading orchestras all over the world. Removed the "Film Fresh" application which is no longer functional due to the service provider stopping the service.
  4. Improved Gapless Playback performance. Resolved issues such as the second track playing twice before moving to the third track, and resolved an issue where the Gracenote information could not be fetched when playing WAV files. (On a related note, there is a small chance in Gapless Playback mode that the second and successive FLAC or APE files become slightly chopped off before moving to the next track. It might be related to the "Compresssion Level" setting during the file encoding. Should this happen, please contact OPPO service and provide some sample files.)
  5. Resolved an issue where user settings (Size, Distance, Trim) inside the Speaker Configuration were incorrectly applied to the Headphone Out signal route. We revised the algorithm in this firmware and the Headphone Out signal is no longer affected by the Speaker Configuration changes.
  6. Added a safety feature for BDP-103/103D: the "SACD Output" format is set to "PCM" by default. The reason is that the digital-to-analog converter (DAC) used on these two models cannot adjust the volume for DSD signals, so the analog volume level could automatically switch back to 100 when a DSD stream is detected. This safety feature will force the DSD stream to be decoded as a PCM stream before sending it to the DAC, which can help control the volume when loading SACD disc(s).
  7. Added support for the "4Kx2K@50/60Hz" resolution to the BDP-103D/105D (HDMI 1 only, and in YCbCr 4:2:0 format only). The "4Kx2K Output" setting for the BDP-103D/105D is set to "Auto 4K 50/60Hz 4:2:0" by default. Please note that once "4Kx2K@50/60Hz" is activated, the user choices of "Color Space (HDMI 1)" and "Deep Color (HDMI 1)" in "Setup Menu -> Video Setup -> HDMI Options" is not used.
  8. Resolved an issue of “Reset Factory Defaults” not erasing the user account for the Youtube Leanback application.
  9. Resolved an "A/V Sync" related issue where the A/V Sync data was not be automatically applied to the Coaxial and Optical digital audio outputs after the player was powered on.
  10. Improved the file sorting algorithm for the media center (the Music, Photo and Movie options on the Home Menu). The player can automatically detect numbers located at the beginning or end of the filenames and sort the files by the numeric value. Albums with numbered tracks will play in the proper order.
  11. Extended support for the PCM audio format for up to 24-bit, 352.8 kHz / 384 kHz via the USB DAC IN port (BDP-105D only).
  12. Resolved an audio sample rate issue between the BDP-105D's USB DAC IN and computers running Mac OS X.
  13. Added the timing adjustment for external subtitles. This can be accessed from the "Option" menu -> "Subtitle Adj." -> "Sync." when playing movies from a USB flash drive or external hard drive.
  14. A new version of the Windows driver for the USB Audio DAC is available for download here (v2.22). It is compatible with BDP-105, 105D and the upcoming headphone amplifier HA-1. Please uninstall the previous version(s) of the OPPO USB DAC driver from your computer before installing this new one.
  15. General disc compatibility improvements based on recent and upcoming Blu-ray releases as well as user-submitted disc samples.

All features and improvements of the previous firmware are also included in this version.




Firmware Upgrade Instructions:

Firmware Upgrade via the Internet

  1. Turn on your TV display and the OPPO player. Eject the disc tray from the OPPO player and remove any disc. Make sure that the player is connected to the internet and the player is not playing any content.
  2. Press the SETUP button on the remote control to enter the setup menu. Select Device Setup, Firmware Upgrade, and then Via Network.
  3. The player will start searching for the new firmware from an OPPO firmware server. Please follow the on-screen instructions to complete the firmware upgrade process. Use the remote control to respond to on-screen prompts. Do not use the front panel buttons because the front panel buttons will stop working during the upgrade process.
  4. DO NOT ATTEMPT TO TURN OFF THE PLAYER, UNPLUG THE POWER, OR PRESS ANY BUTTONS OTHER THAN NECESSARY TO RESPOND TO THE ON-SCREEN PROMPT DURING THE REMAINING UPGRADE PROCESS.
  5. In order to complete the firmware upgrade process, the player will turn off automatically.
  6. Turn on the player again. It is optional but recommended to reset the player settings by selecting "Reset Factory Defaults" in the "Setup Menu" -> "Device Setup".
  7. Repeat from Step 2 above until the player reports that it already has the latest version. This will ensure that the player downloads and installs all parts of the firmware update.
  8. Check the new firmware version by going to the setup menu, and then selecting Device Setup - Firmware Information.
  9. Enter your customized settings as necessary.
  10. Congratulations! You have just completed the firmware upgrade.

Firmware Upgrade via a USB Thumb Drive

  1. Click here to download the BIN file for firmware version: BDP10X-75-0515.

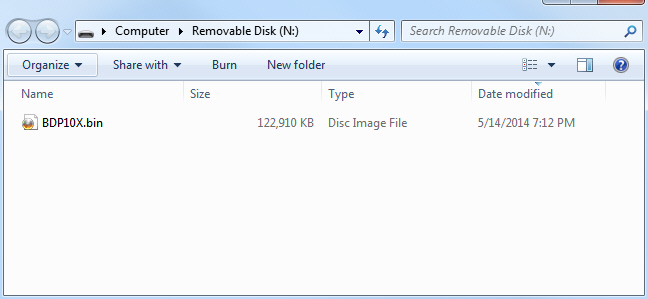

  2. Insert a USB thumb drive to the computer that stores the downloaded BDP10X.bin file. (The USB drive must be in FAT or FAT32 format, not NTFS. If you are not sure, just use a new USB drive that is 2GB or smaller since small drives are usually factory-formatted in FAT/FAT32.) Verify that the BIN file is in the root/main directory of the USB drive, not contained within any other folder. Ensure the file name and size are the same as shown below:

    USB Drive

  3. Remove the USB drive from the computer.
  4. Turn on your TV display and the OPPO player. Eject the disc tray from the OPPO player and remove any disc. Make sure that there is no other USB drive connected to the player.
  5. Insert the USB drive containing the firmware file to a USB port on the player's front or back panel.
  6. The player usually can recognize the firmware file and prompt you for firmware upgrade. In case the player does not prompt you, press the SETUP button on the remote control to enter the setup menu. Select Device Setup, Firmware Upgrade, and then Via USB.
  7. Please follow the on-screen instructions to complete the firmware upgrade process. Use the remote control to respond to on-screen prompts. Do not use the front panel buttons because the front panel buttons will stop working during the upgrade process.
  8. DO NOT ATTEMPT TO TURN OFF THE PLAYER, UNPLUG THE POWER, OR PRESS ANY BUTTONS OTHER THAN NECESSARY TO RESPOND TO THE ON-SCREEN PROMPT DURING THE REMAINING UPGRADE PROCESS.
  9. In order to complete the firmware upgrade process, the player will turn off automatically. Unplug the USB drive after the player turns itself off.
  10. Turn on the player again. It is optional but recommended to reset the player settings by selecting "Reset Factory Defaults" in the "Setup Menu" -> "Device Setup".
  11. Check the new firmware version by going to the setup menu, and then selecting Device Setup - Firmware Information. If you notice that the firmware versions displayed do not match the versions listed in this release note, please contact us to obtain the firmware files that are missing from a previous update.
  12. Enter your customized settings as necessary.
  13. Congratulations! You have just completed the firmware upgrade. Erase or discard the firmware file so you do not accidentally install the firmware again.

Firmware Upgrade via CD

  1. If you requested a firmware CD from OPPO customer service, jump to step 5 of this procedure. You may also follow steps 2 - 4 to burn a firmware CD. (For Mac OS X users, a special CD burning tutorial is available here.)
  2. Click here to download the firmware CD image file BDP10X-75-0515 -CD-Image.iso.
  3. Use your favorite CD/DVD burning software to burn a firmware disc from the downloaded CD image file. While doing this, make sure you are not creating a new data disc, but burning from the already-created ISO CD image. Please consult your CD burning software's help/instruction manual for more information on how to do this. Some general instruction for common CD burning software is listed below.

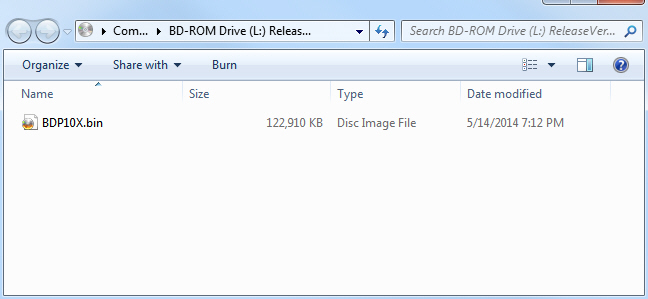

  4. After the disc is burned, verify on the computer that the disc now contains a BDP10X.bin file. Ensure the file name and size are the same as shown below. This is your firmware disc.

    CD

  5. Turn on your TV display and the OPPO player. Make sure that the player is not playing any content.
  6. Eject the disc tray, put in the firmware disc, and then close the tray. The player usually can recognize the firmware disc and prompt you for firmware upgrade. In case the player does not prompt you, press the SETUP button on the remote control to enter the setup menu. Select Device Setup, Firmware Upgrade, and then Via Disc.
  7. Please follow the on-screen instructions to complete the firmware upgrade process. Use the remote control to respond to on-screen prompts. Do not use the front panel buttons because the front panel buttons will stop working during the upgrade process.
  8. DO NOT ATTEMPT TO OPEN THE DISC TRAY, TURN OFF THE PLAYER, UNPLUG THE POWER, OR PRESS ANY BUTTONS OTHER THAN NECESSARY TO RESPOND TO THE ON-SCREEN PROMPT DURING THE REMAINING UPGRADE PROCESS.
  9. Remove the disc from the tray when the tray ejects out. In order to complete the firmware upgrade process, the player will turn off automatically. In case the player retracts the tray and turns off before you remove the firmware disc, press the OPEN/CLOSE button on the front panel. The player will turn on and the tray will eject. Remove the disc at this time.
  10. Turn on the player again. It is optional but recommended to reset the player settings by selecting "Reset Factory Defaults" in the "Setup Menu" -> "Device Setup".
  11. Check the new firmware version by going to the setup menu, and then selecting Device Setup - Firmware Information. If you notice that the firmware versions displayed do not match the versions listed in this release note, please contact us to obtain the firmware files that are missing from a previous update.
  12. Enter your customized settings as necessary.
  13. Congratulations! You have just completed the firmware upgrade. Erase or discard the firmware disc so you do not accidentally install the firmware again.

General instructions on working with ISO image files

Note: These are general instructions on how to burn the firmware CD with common CD burning software. Please consult your CD burning software's help/instruction manual for more detail.

  • In Nero Burning Rom version 6 or above , go to the 'Recorder > Burn Image' menu and select the ISO image you downloaded.
  • In Nero Burning ROM version 5 or earlier, just go to Nero Burning ROMs 'File > Burn Image' option and select the ISO image you downloaded.
  • In Nero Express select the option for 'Disc Image or Saved Project' to select the ISO image file you downloaded and burn to CD.
  • In Easy CD Creator , go to 'File > Record CD from CD Image' and select the ISO image you downloaded.
  • In Power2Go , go to 'Burning > Burn Disc Image' and select the ISO image you downloaded.
  • In ImgBurn, go to 'Write image file to disc' and select the ISO image you downloaded.
  • In burnatonce, go to 'File > Load New Image...' and select the ISO image you downloaded. Click the "Write" button to burn the CD.
